Fire Hydrant System

A fire hydrant is a vertical steel pipe with an outlet, close to which two fire hoses are stored.During a fire, firefighters will go to the outlet, break open the hoses, attach one to the outlet, and manually open it so that water rushes out of the nozzle of the hose.

External location :
  • Terrace :- booster pump , Butterfly NRV.
  • Staircase :- wet riser , dry riser.

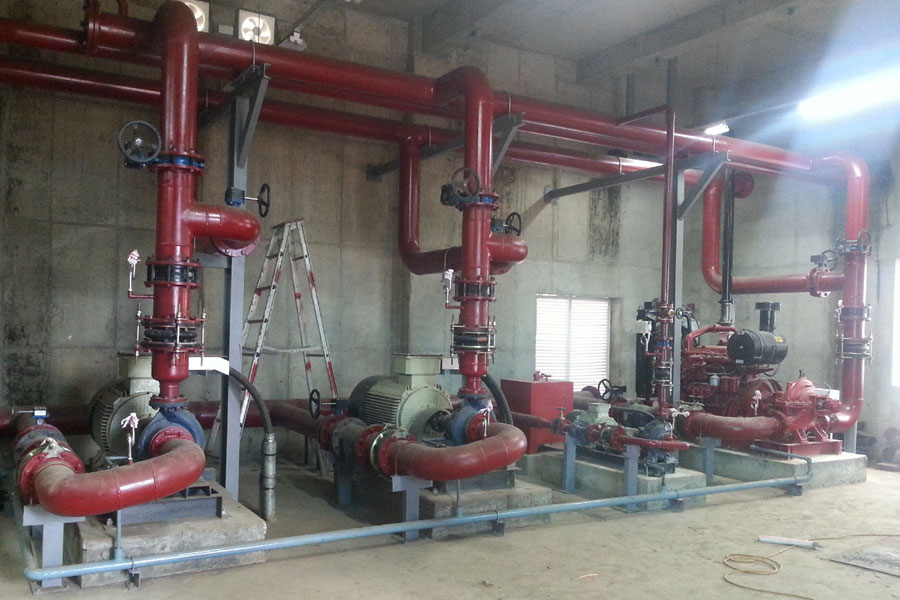

  • Ground floor :- pump, panel., 2way/4way valve.
Internal Location :
  • Each floor :- hose pipe , hose box, hose reel , hydrant valve ,branch pipe smoke detector,

FIRE HYDRANT SYSTEM

Company History

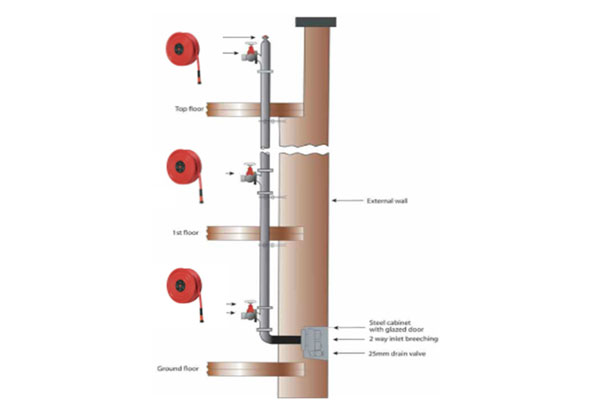

Wet Riser
  • Headed from booster pump to ground floor .
  • Located along staircase
  • Consist of Hydrant valve and hose reel on each floor
  • 2way /4way valve is connected at ground level
  • External water supply is provided through 2way/4way valve to wet riser.
Company History

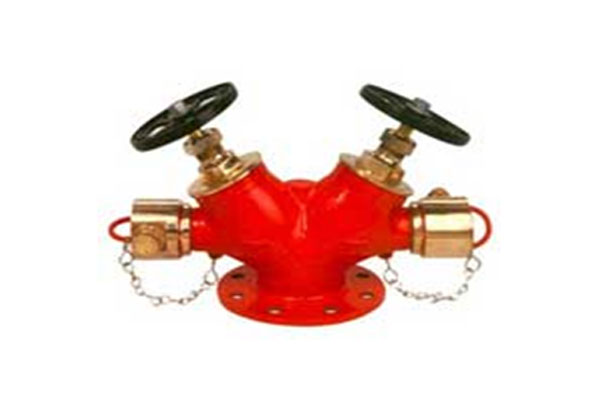

Hydrant valve
Location :
  • Located on each floor
  • Connected to wet riser
Gunmetal /Stainless steel / CI :

consist of two wheels for adjusting the pressure of water Female outlet of hosepipe is connected to male outlet of hydrant valve

Company History

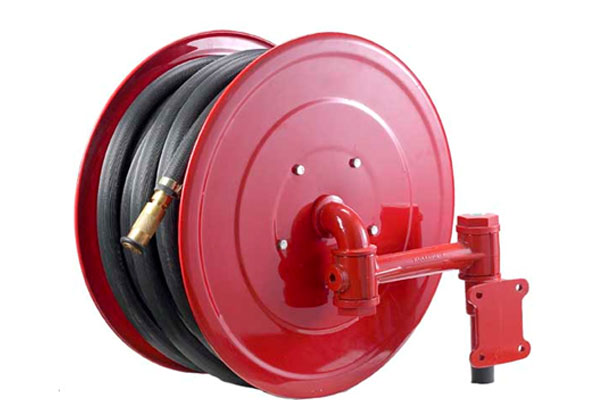

Swinging type Hose reel
Location :
  • Located on each floor
  • Connected to wet riser
  • 3/4” rubber hose (black or yellow in color)
  • Rolled on hose drum
  • Spray jet nozzle is headed at the end of rubber
  • hose
  • Ball valve helps in flowing the water
Company History

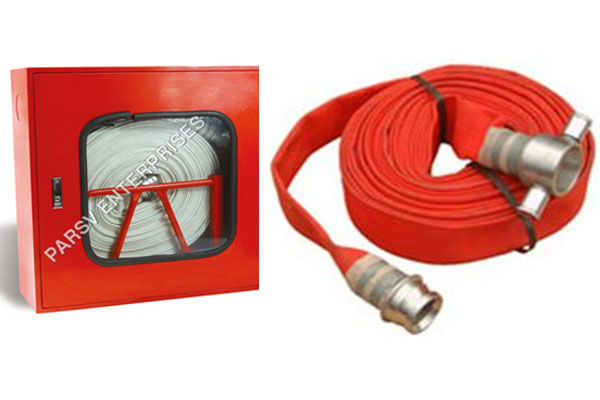

Hose Pipe
Location :
  • Located on each floor
  • Placed in Hose Box
  • Connected to male outlet of hydrant valve
Types :
  • CP (canvas pipe )RL(rubber line ) rubber coating inside
  • Length
  • 15mtr long
Company History

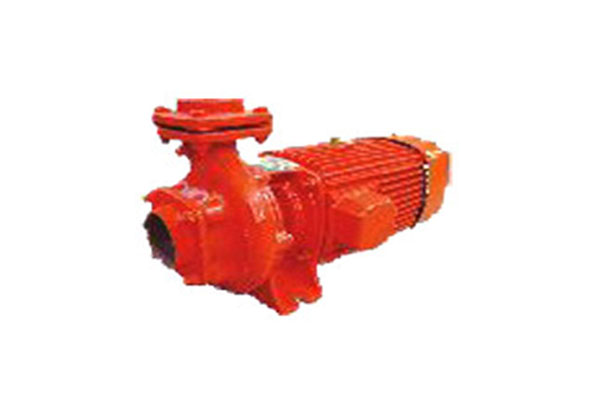

Booster pump
Location :
  • Terrace
Capacity :
  • 450LMP, 3HP , 5HP, 7.5HP
Functions :
  • Provide Pressure for water supply from bottom to top.
Company History

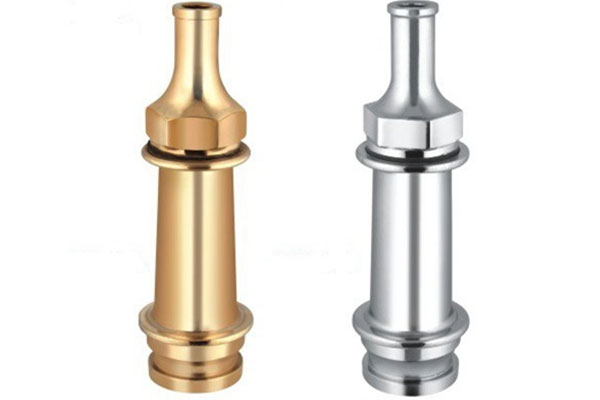

Branch Pipe (nozzle)
Location :
  • Located on each floor
  • Connected to hose pipe
Gunmetal /Stainless steel / aluminum :
  • 20mm in outletsize
  • 63mm inlet in size
  • Maximum pressure of water
